Geometry refinement#

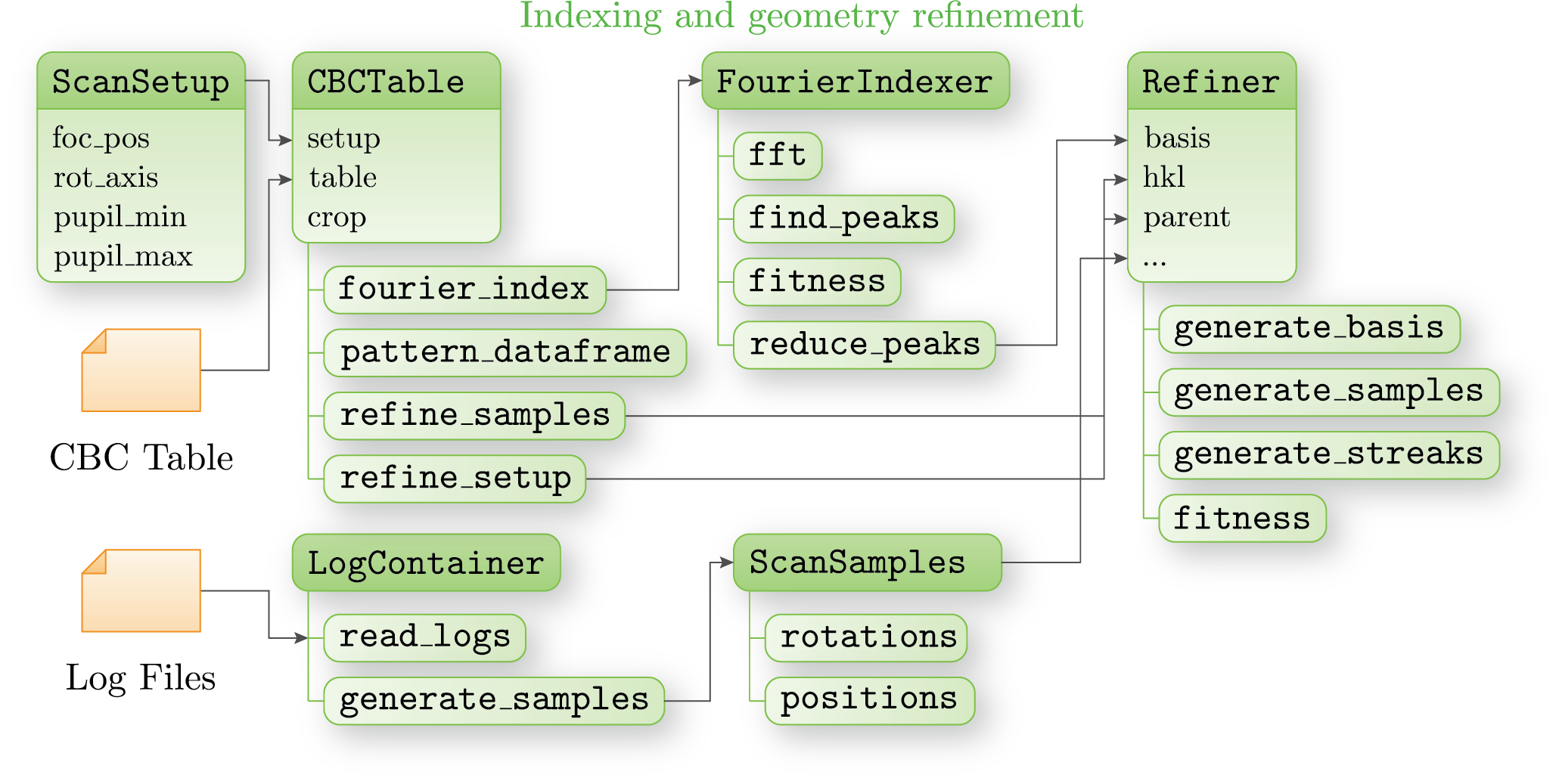

A flow diagram of the main classes.

The problem of finding the incoming wave-vector, the scattered wave-vector and the recipocal lattice point that correpond to each Bragg reflection measured on the detector is called indexing. Before indexing the CBC patterns, one must retrieve the correct experimental geometry and crystalline lattice. The software suite provides a set of tools to retrieve them from the experimentally measured patterns.

Before repforming the geometry and lattice refinement, one needs a CBC table generated from the detected diffraction streaks (cbclib.LSDetector.export_table()) and an initial estimate of the experimental geometry (see ScanSetup). The following classes are central to the setup and lattice refinement of CBC patterns:

  • CBC Table : cbclib.CBCTable is the main data container for CBC tables. It provides an interface to output any specific CBC patterns in the scan in different formats. Besides, it contains a set of methods to perform the indexing and sample refinement procedure.

  • Fourier Indexer : cbclib.FourierIndexer is the Fourier auto-indexing tool specifically tailored to CBC pattern. It contains a rasterised 3D image of normalised intensity profiles mapped to the space of scattering momentum. It provides methods to perform the Fourier transform (cbclib.FourierIndexer.fft()) and find the highest peaks that correspond to the lattice unit vectors of the sample (cbclib.FourierIndexer.find_peaks()).

  • Sample Refiner : cbclib.SampleRefiner performs the sample refinement. It employs cbclib.CBDModel CBD pattern prediction to find the sample positions and alignments, that yield the best fit with between the simulated and experimentally measured patterns. The refinement is performed by minimizing the cross-entropy criterion between the predicted and experimental patterns. The sample positions and orientations are refined for each frame separately.

  • Setup Refiner : cbclib.SetupRefiner performs the experimental setup refinement. It employs cbclib.CBDModel CBD pattern prediction to find the experimental setup parameters, that yield the best fit with between the simulated and experimentally measured patterns. The refinement is performed by minimizing the cross-entropy criterion between the predicted and experimental patterns of the whole dataset.

  • Scan Samples : cbclib.ScanSamples is a data container that stores the results of the sample refinement. It provides an interface to save and load the results to a pandas.DataFrame. Also, one can regularise the sample positions through the scan by using the gaussian processes.
